[ Mini smart servo machine] RD-BM-408S Box-motion Packaging Machine ( less 2 meter)

The flow packaging machinery RD-BM-408S is the mini smart servo packaging machine, the whole length less than 2 meters with flexible wheels. It can save lots of space, especially suitable for a small workshop or baking shop.

This kind of 4 servo motors controlled packaging machine capable of 100 kinds of products. The feeding conveyor works as one smart sorting unit, which can automatically detect bag lengths and products, so it rapidly saves product wastes and films. The most attractive function is no product no pack, so the packaging machine can wait for worker feeding sometime. This great function can save at least 20% of film wastes.

This smart mini packaging machine RD-BM-408S is suitable for lots of packaging material at 80 bags per minute, which can save at least 3-5 workers.

1. Product introduction of flow packaging machiner RD-BM-408S.

The flow packaging machinery RD-BM-408S is the mini smart servo packaging machine, the whole length less than 2 meters with flexible wheels. It can save lots of space, especially suitable for a small workshop or baking shop.

This kind of 4 servo motors controlled packaging machine capable of 100 kinds of products. The feeding conveyor works as one smart sorting unit, which can automatically detect bag lengths and products, so it rapidly saves product wastes and films. The most attractive function is no product no pack, so the packaging machine can wait for worker feeding sometime. This great function can save at least 20% of film wastes.

This smart mini packaging machine RD-BM-408S is suitable for lots of packaging material at 80 bags per minute, which can save at least 3-5 workers.

2. Characteristics and structural features of flow packaging machine RD-BM-408S

(1) Box-motion End-seal: Very good-looking and well-sealed packages.

(2) Strong Machine Body: Cantilever machine frame + integrated electrical cabinet.

(3) Belt Feeding Design: Easily operation and daily cleaning.

(4) Sanitary Standard: SUS304 machine housing to meet highly regulated food-grade standards.

(5) Full-cover safety cover, equipped with a safety switch (alarm stop), to avoid the occurrence of accidents.

(6) Compact and Small: No more than 2-meter long.

(7) Smart & High Tech: Servo motor is driven and computer-controlled.

(8) Easy Maintenance: Less mechanical parts and lower operating noises.

sealing unit of 508 packaging machine.png

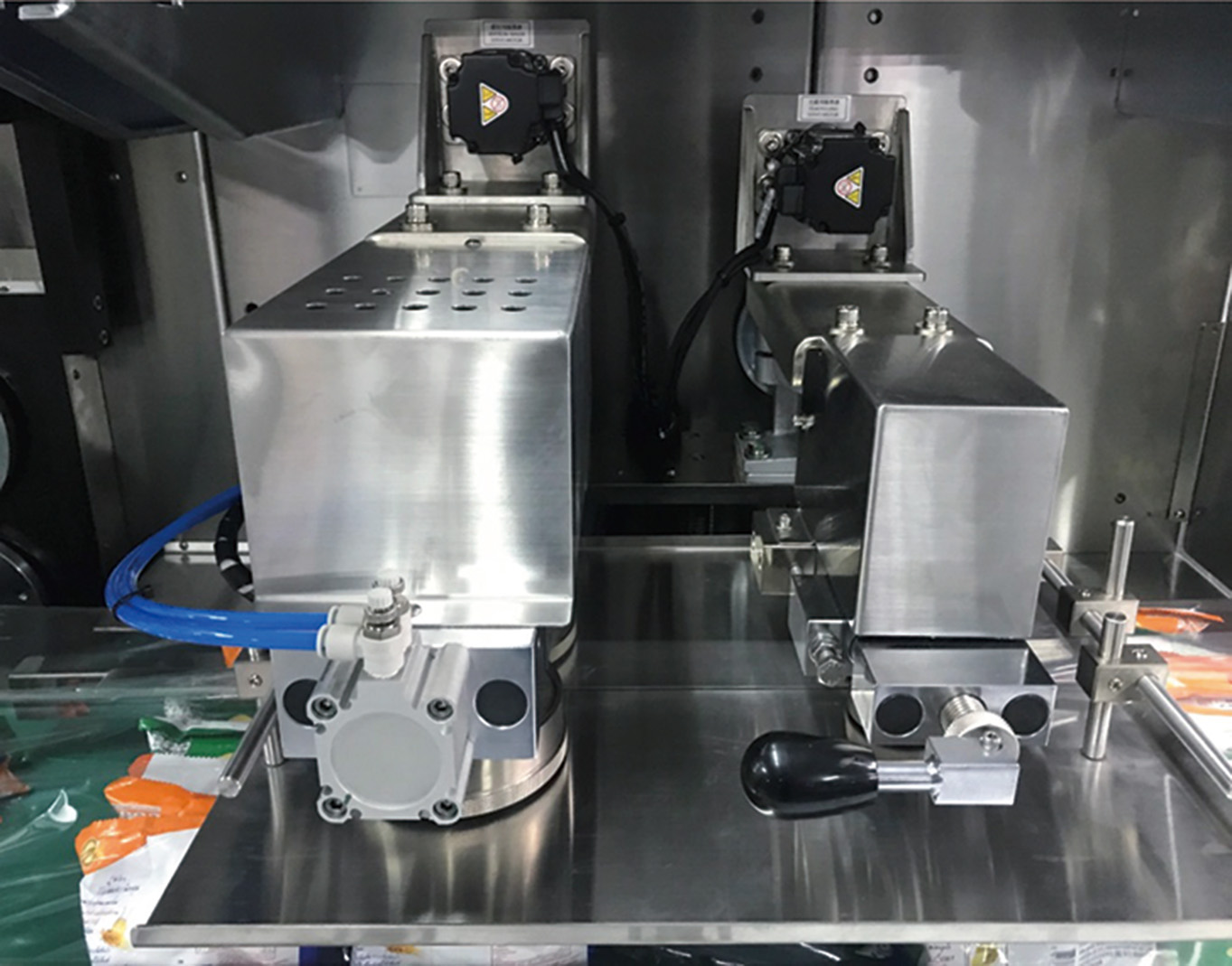

Sealing part with the folding-line device

packaging sample 508.jpg

Folding-line device sample

touch screen 508 flow packaging machine.png

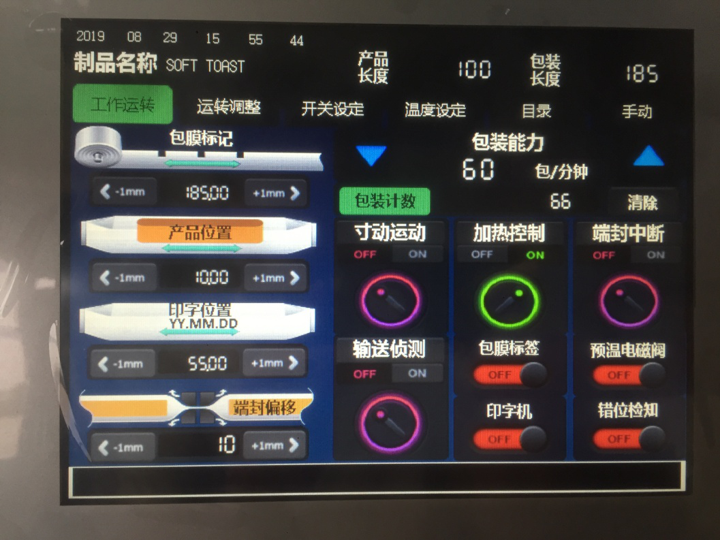

Touch screen

Film support for 508 Packaging machine.png

Film support

3. Main features and advantages:

(1) Compact and Small: Occupy less space, easy to move.

(2) HMI Touch screen: 7.2-inch color touch panel, easier for a user to operate the machine,

(3) 100 Recipes: Able to save up to 100 product recipes for any complicated production

(4) Belt feeding: Easily for the user to do manual product loading and belt cleaning.

(5) Smart Belt Design: patent fast dismantles belt design, easily removable belt without any help of tools.

(6) No Product No Pack Function: With this function, no empty bag and no waste will be produced.

(7) Box-motion design: Blade is not easy to wear out, and no need to adjust.

(8) M.I.S. Function (Misplaced Item Skip): Efficiently to reduce waste and avoid incorrect cutting.

(9) Machine built according to CE standard

508s gusset device of packing machine.jpg

RD-BM-408S bag former with gusset device

sealing parts for flow pack.jpg

Sealing parts about RD-BM-408S

QR-BM-500 packing machine infeed conveyor.jpg

RD-BM-408S Detector

QR-BM-508 Servo packaging machine

Cutting part

4. Application of packaging machine RD-BM-408

Baking products, frozen food, bread and cakes, boxed products, for higher packaging products have more advantages.

Rice ball packaging machine RD-BM-408

FOOD PACKAIGNG MACHINE RD-BM-408S

BAKERY PACKAGING MACHINE  RD-BM-408S

Technical Specifications

No.

Items

Model

RD-BM-408S Box-motion Servo Packaging Machine

1

Bag former(mm)

(L)100-400mmW50-140mmH)5- 70mm

2

Bag length

80-400mm;

3

Film Width

100-400mm

4

Packing Speed

60-80bags/minute

5

Packing material

KNY+PE / KNY+CPP/OPP+CPP/PET+CPP/PET+VMCPP

6

Machine size

Belt design:  L2020*W990*H1400mm

Pusher design:  L2260*W990*H1400mm

7

Total Power

3.5KW

8

Voltage

Single phase 220V  50/60HZ  Air pressure: 0.6MPA

9

Overall Weight

700KG

Main electrical components

No.

Name

Spec

Brand

1

PLC controller



Yasukawa-Japan

2

Encoder



OMRON-Japan

3

HIMI touch screen

7.2inch

Fuji-Japan

4

Sealing servo controller

750W

Yasukawa-Japan

5

Film servo controller

400W

Yasukawa-Japan

6

Servo motor

750W/400W

Yasukawa-Japan

7

Frequency inverter



Fuji-Japan

8

Reduction box



Yasukawa-Japan

9

Temperature meter



OMRON-Japan


Q: What's the most special character RD-BM-508S packaging machine has?

A: With belt type infeed conveyor, the packaging machine is much smarter than the rotary packaging machine.

Q: How many products do the RD-BM-508S packaging machine can handle?

A:  The packaging machine can handle lots of products of different sizes.

Q: Is it hard for operation if the packaging machine RD-BM-508S packages lots of products?

A: No. It's very simple. Just need to adjust the first time of the first product. Then our packaging machine can save those formulas.  Next time you just need the find out the product name and follow those settings.

Q: The packaging machine can save how many sets of formula?

A: RD-BM-508 packing equipment can save 100 sets of product formulas.

Q: Have any optional devices for the RD-BM-508S packaging machine?

A:  Yes, the flow packaging machine has lots of optional devices as below:

  1. Adjustable bag former
  2. Folding-line device
  3. Automatic splicing film
  4. Extra infeed belt
  5. Extra out-put belt
  6. Adjustable conveyor
  7. Collection device
  8. Ink roll printer
  9. Thermo transfer printer
  10. Labeling machine
  11. Hole punch
  12. Easy-tear notches
  13.  Coupon inserting device

Q: Does the packaging machine cut products?

A:  No, the packaging machine has a sensor. No product not cutting, so reduce product wastes.

Q: Can the packaging machine stop if no product in the infeed conveyor?

A:  Yes. The flow pack machine will stop once it detects no product in the infeed conveyor. So it won't waste any packing materials.
