ZP-100 flow packaging machine in 220 bags per minute with CE and good price with almost 20years experience. Devoting ourselves to packaging machine almost several decades, covering most of Europe, America, Asia and Africa markets. We are expecting become your-long-term partner in China
ZP-100 Horizontal packaging machine with high speed and CE
1.Product introduction of the ZP-100 flow packing machine
This ZP-100 flow wrapping machine is the first invented model with 220 bags per minute stable speed, designing for small products, such as cake , biscuit, tissue, hardware parts
Automatic machines for high productions. Horizontal packing using a single film coil with three weldings : two cross-weldings and one longitudinal welding. This type of packaging machine is aimed at food and non - food markets.
2.Characteristics and structural features of the ZP-100 flow packaging machinery
(1)Automatic detect and set bag length without manual setting on the packaging equipment touch screen
(2)Simple machine structure with flexible wheels, easy to maintain or change location. It guarantees long life span and hygienic.
(3)The single chip of main control circuit developed by our company. Digital screen and transducer control guarantees conveniently operation
(4)Double transducer control with stepless speed shift and wide adjustment, It can match well with the former working procedure of production line;
(5)Highly sensitive detector automatically and accurately monitors the whole packaging procedure.
(6)Independent temperature control guarantees beautiful and tight sealing packages.
(7)Suitable for a wide variety of flexible packing material, packing size and products.
(8)Optional device: Date printer, air charging device and servo motors
(9)Machine with a compact design, ideal for small-scale production.
(10)Cantilever design cosntruction to optimise machine hygiene and cleaning.
(11)2.5 m long infeed conveyor for packaging equipment.
(12)Top reel holder with self-centring reel fastening and braking system.
(13)Three pairs of rollers for pulling film and longitudinal seals.
(14)Rotating jaw sealing head with maximum flexibility.
(15)djustable infeed pitch for varying products
(16)Mechanic gear box to adjust the bag length
(17)Toothed shaft to configured according to product’s length
(18)Safety covers with safety micro-switches
(19)54 mm out-feed belt/finished belt of the packaging equipment
(20)Intelligent temperature control, intuitive display, easy for setting, accurate temperature
3.Optional device of the packaging equipment
(1)"No product - No bag" function.
(2)Extra metre of feeding conveyor.
(3)Photocell for centring printed film.
(4)Double reel holder.
(5)Date code printers.
(7)Zig-zag cutting knives.
5.Packing machine details introduction:
A.Spool holder/ Film real support about packaging machine
The spool holder is self-centering and allows for easy film spool replacement
Automatic double spool-holders are available as an add-on option if a label applicator is not installed
B.Seal wheel about packaging machine
The electrical resistance system helps to avoid burning of the film, even when the machine is not running
The system is controlled by a digital temperature control with dual screen HMI for correcting asynchronies and reduces discrepancy to +/-2°C
The rollers resistance system is activated by solid state relays
The temperature control has multiple alarm signals to alert operators if issues arise
Greasing points are centralized for easy maintenance
The forming tunnel is universally adjustable for height and width
C.Head-cutter about packaging machine
An easy to use electric button on the HMI is used to position the product with the head-cutter
The temperature control is equipped with several alarm signals
The cutting blade is fully adjustable
Greasing points are centralized for easy maintenance
The structure of the group is coated steel and the heat points are mechanically separated in order to allow for excellent heat dispersion
The pressure dampener is adjustable by two springs
The machine is equipped with safety devices to prevent damaging the mechanics. Sensitivity can be adjusted according to the product
The controls allow for variable widths and heights of the products
The in-feed conveyor has a total length of 2.5 meters and features stainless steel lateral guides that can be easily opened and cleaned. An optional in-feed conveyor that is 1000-3000 mm is also available.
The removable pushers are made from high-quality plastic and are certified for use with food products
Product is transported by Teflon mats to avoid damages
The bottom opening of the in-feed conveyor is hinged to provide easy access for cleaning
6.Application of the ZP-100 horizontal flow packing equipment
Packing biscuit, cookies, ice pops, snow cake, chocolate, candy, daily commodity, hardware and other solid objects.
Technical parameters of ZP-100 horizontal packaging machinery.
ZP-100 horizontal packing machine
Plastic film (OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL)
Pillow type/fat pouch (3-side presealed)
Bag size (L*W*H)
Packing Dimension (L*W*H)
Q: What’s the packing material is suitable for our machine?
A: Opp/CPP、PT/PE、KOP/CPP、ALU-FOIL. You are always welcome to send us some samples for confirmation.
Q: What’s the thickness of the packaging film will be the best?
A: Normally around 3 micro mm – 6 micro mm.
New office and packaging machine workshop
Due to the big production requirement, Foshan Ruipuhua Machinery Equipment Co. LTD will expand the office and workshop. As plan, RUIPUHUA company will expand 5 floors for a new office building. And 3 floors for the packaging machine workshop, the first floor will be used for the semi-automatic packaging machine, the secondary for an automatic packaging machine, the third floor for the box-motion packaging machine, the secondary packaging, and the robot system.
And there will have a very huge meeting room and can contain over 200 people. Ruipuhua people are waiting for you to visit after in October 2021 year. If you have time please contact Lotus. ( Email: firstname.lastname@example.org, Whatsapp/ mobile: +8613420743171)
ZP-500 Flow Packing Machine for Chocolate Bar in 350 Bags Per Minute with Ce and Lifelong Maintenance
Weight Checker for All Industry, Guarantee Product Quality within Certain Range and Reduce Defective Percentage

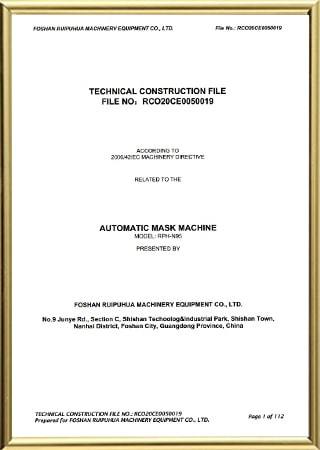

Certification About Flow Packaging Machinery
